[vc_row][vc_column][vc_column_text]The F660 V8.0 provides 1 POT ports, 1GE and 3FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port.The F660 gpon onu is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F660 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.[/vc_column_text][vc_single_image image=”3762″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_single_image image=”3639″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_column_text] F660IS THE CLIENT ACCESS GATEWAYFTTO (Fiber to the Office) scenario constructionMainly used for FTTH (Fiber to the Home).
Adopting advanced 11n techniques including MIMO and channelbound, the F660 creates a superior wireless performance. Withdata rates up to 300Mbps, data transmission within the LAN be-comes more efficient and high bandwidth applications such as HDvideo and online gaming run more smoothly.[/vc_column_text][vc_single_image image=”3746″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_single_image image=”3744″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_column_text]COST-EFFECTIVESTABLE AND ENVIRONMENTALLY FRIENDLY
To provide high reliability access and no different service experi-ence in FTTO/H network, full serial ONUs adopt cost-effectivestable and eco-friendly backup battery solution with LiFePO4 andNi-HM battery to provide up to 14h backup power.[/vc_column_text][vc_single_image image=”3736″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_single_image image=”3735″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_column_text]
|
PON Feature
|
Optical port: 1 x GPON interface (SC/PC)
Transmission Distance: 0 ~ 20km Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream |
|
User Network Interface
|
4 x10/100 Base-T;Half/full duplex; Auto MDI/MDIX; Auto negotiation
2 x POTS interfaces 1 x Wi-Fi (external antenna) interface: IEEE 802.11b/g/n @2.4G Hz 1 x USB 2.0 host interface |
|
Optical Module
|
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm Receiving Sensitivity: -28dBm Transmitting Optical Power: 0.5~5dBm |
|
Main Function
|
Supported service:VoIP, Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports VLAN: 802.1Q, 802.1P, 802.1ad MAC address table: 1K L3 function: DHCP server/Client, DNS Client, NAT IPv6: Dual Stack, DS-Lite VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38 Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping Multicast group per user port: 256 QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR Management: local web management, OMCI, TR069 Management: local web management, OMCI USB: DLNA DMS, USB backup, 3G/LTE dongle |

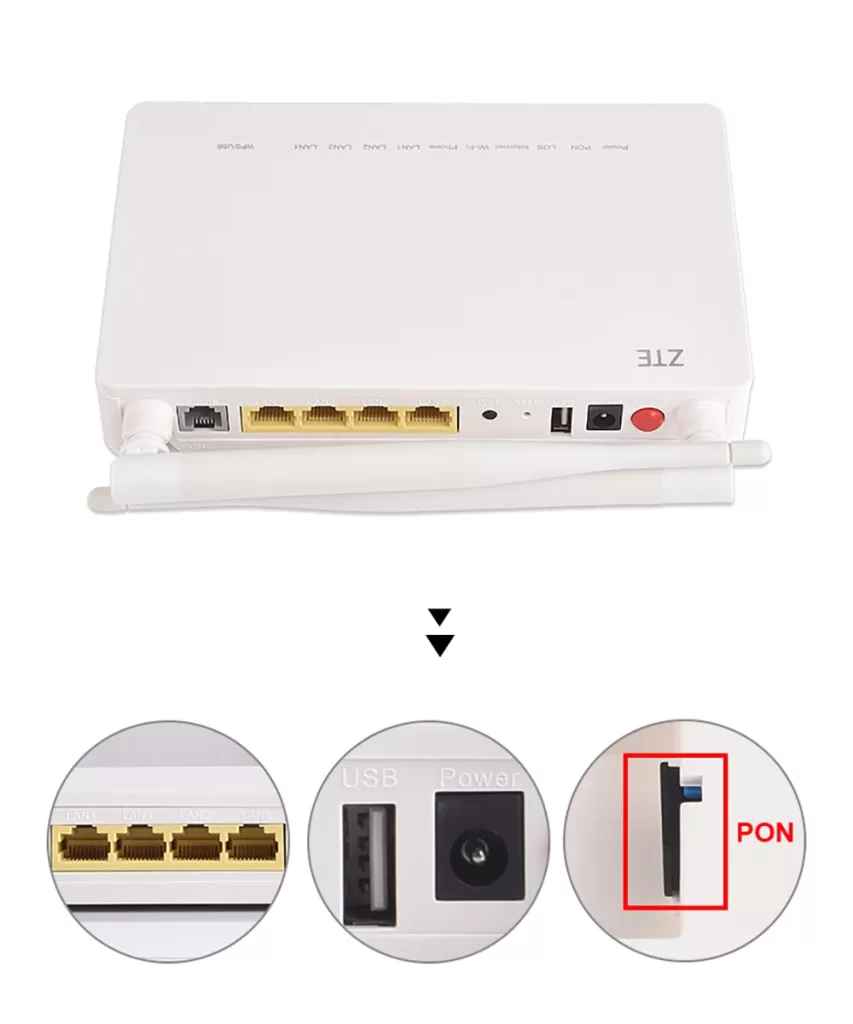

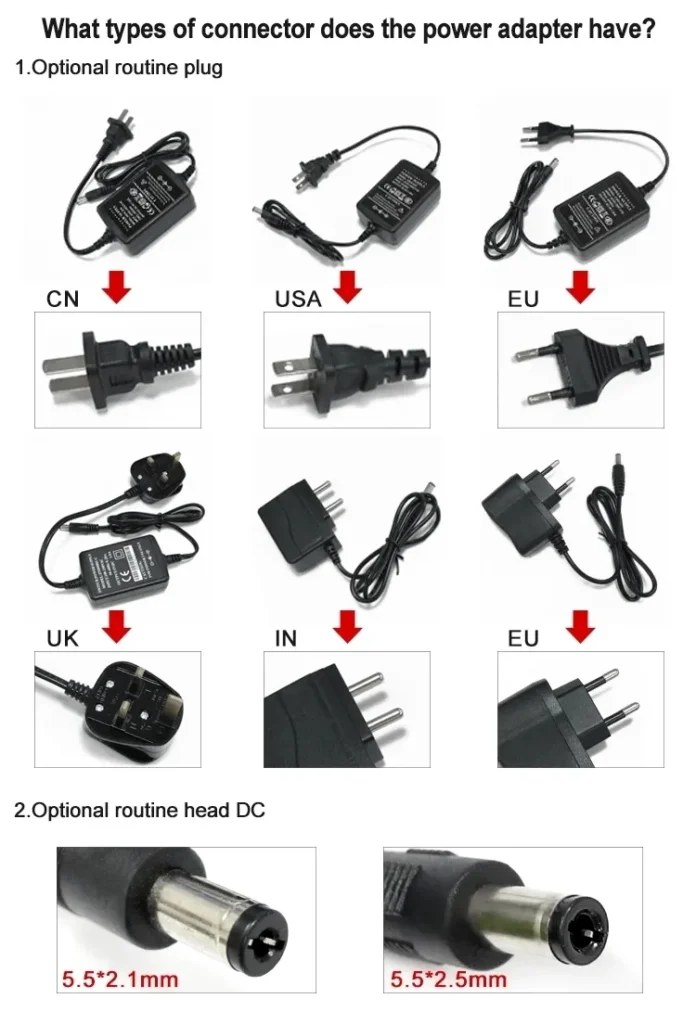

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_custom_heading text=”Detail F660 ONU Pictures”][vc_single_image image=”3770″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_custom_heading text=”Power adapter details”][vc_single_image image=”3771″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_single_image image=”3772″ img_size=”full” alignment=”center” onclick=”link_image” label=””][vc_custom_heading text=”Package”][vc_column_text]The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo available
Inner packing: individual package 1pcs in a box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.[/vc_column_text][/vc_column][/vc_row]
