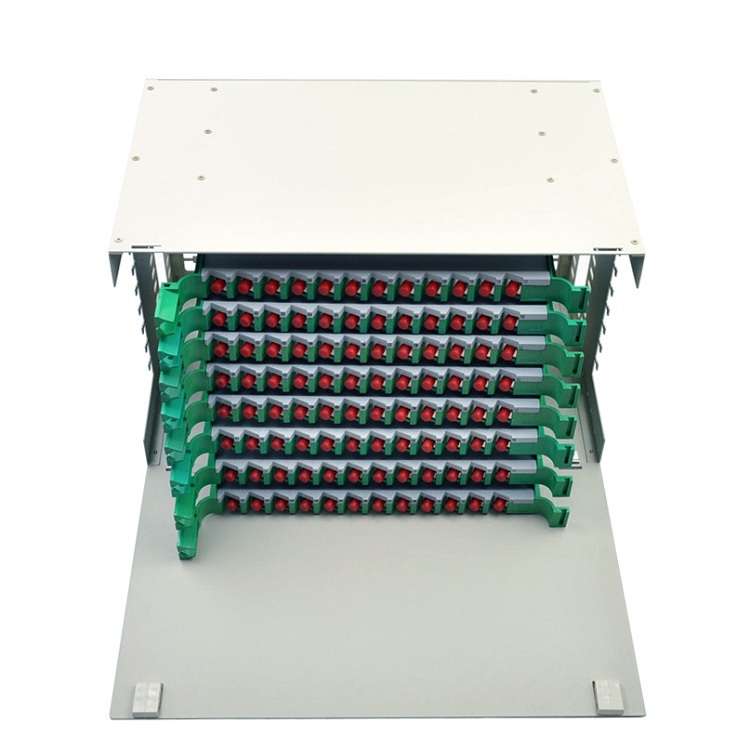

optical fiber distribution frame ODF rack mount 12 24 48 96 144 core port ODF
$23.00
Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
Fast shipping
Cartoon Box Packing
Product Description
optical fiber distribution frame ODF rack mount 12 24 48 96 144 core port ODF
Rack-mount Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be
pre-installed with various kinds of fiber optic adapters and pigtails.It is with standard 19 inch size and properly designed to
control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic
cables connection storage, distribution and management.
pre-installed with various kinds of fiber optic adapters and pigtails.It is with standard 19 inch size and properly designed to
control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic
cables connection storage, distribution and management.
Features:
1. Standard size, light weight and reasonable structure.
2. Splice tray inside changeable.
3. Can be used in 19′, 23′ standard distribution frame.
4. Suitable for ribbon and single fiber.
5. Various panel plate to fit different adapter interface.
6. Front mark on the plate is easy for identification and operation.
7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters.
8. Easy for management and operation.
1. Standard size, light weight and reasonable structure.
2. Splice tray inside changeable.
3. Can be used in 19′, 23′ standard distribution frame.
4. Suitable for ribbon and single fiber.
5. Various panel plate to fit different adapter interface.
6. Front mark on the plate is easy for identification and operation.
7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters.
8. Easy for management and operation.
Applications:
It can fix the optic cable and protect the connection between cables and pigtails
The box is unique structure, reasonable layout. It’s easy installation and convenient maintenance
There is clear identification. Easy for transfer, jumper and test.
The box is unique structure, reasonable layout. It’s easy installation and convenient maintenance
There is clear identification. Easy for transfer, jumper and test.
Product Paramenters
Rack-mount Fiber Optic Distribution Frame
|
Model
|
Core Count
|
Height
|
Dimension(cm)
|
Weight(kg)
|
|
ODF-R144
|
144
|
7U
|
49×30.5×31.15
|
17.1
|
|
ODF-R96
|
96
|
5U
|
49×30.5×22.25
|
11
|
|
ODF-R72
|
72
|
4U
|
49×30.5×17.8
|
9
|
|
ODF-R48
|
48
|
3U
|
49×30.5×13.35
|
7
|
|
ODF-R36
|
36
|
2U
|
49×30.5×8.9
|
5.7
|
|
ODF-R24
|
24
|
2U
|
49×30.5×8.9
|
4.6
|
