Product Description
Cheap Fiber Optic Connector SC LC FC ST PC APC with 0.9/2.0/3.0mm Boot
Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector ports in fiber optic systems Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.
Key Features:
* Return Loss: UPC >55 dB,
* APC>65 dB Back Reflection: APC<-65dB,
* UPC<-55dB Temperature Cycling:-20℃~-80℃
* Polishing Grade: PC, UPC, APC
* Connector Type: SC, FC, ST, LC. MU
* Fiber type: SM(9/125um)
* Optical performance 100% factory tested
* Easy installation as plug type
* APC>65 dB Back Reflection: APC<-65dB,
* UPC<-55dB Temperature Cycling:-20℃~-80℃
* Polishing Grade: PC, UPC, APC
* Connector Type: SC, FC, ST, LC. MU
* Fiber type: SM(9/125um)
* Optical performance 100% factory tested
* Easy installation as plug type
Applications:
1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification
Parameter
|
Unit
|
FC,LC,SC
|
ST,MU
|
|||||
SM
|
MM
|
SM
|
MM
|
|||||
PC
|
UPC
|
APC
|
PC
|
PC
|
UPC
|
PC
|
||
Insertion loss(typical)
|
dB
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.3
|
Return loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥30
|
≥45
|
≥50
|
≥30
|
Operating wavelength
|
nm
|
1310,1510
|
1310,1510
|
|||||
Exchangeability
|
dB
|
≤0.2
|
≤0.2
|
|||||
Vibration
|
dB
|
≤0.2
|
≤0.2
|
|||||
Operating temperature
|
°C
|
-40~+75
|
-40~+75
|
|||||
Storage temperature
|
°C
|
-45~+85
|
-45~+85
|
|||||
Cable diameter
|
mm
|
Φ3.0,Φ2.0,Φ0.9
|
Φ3.0,Φ2.0,Φ0.9
|

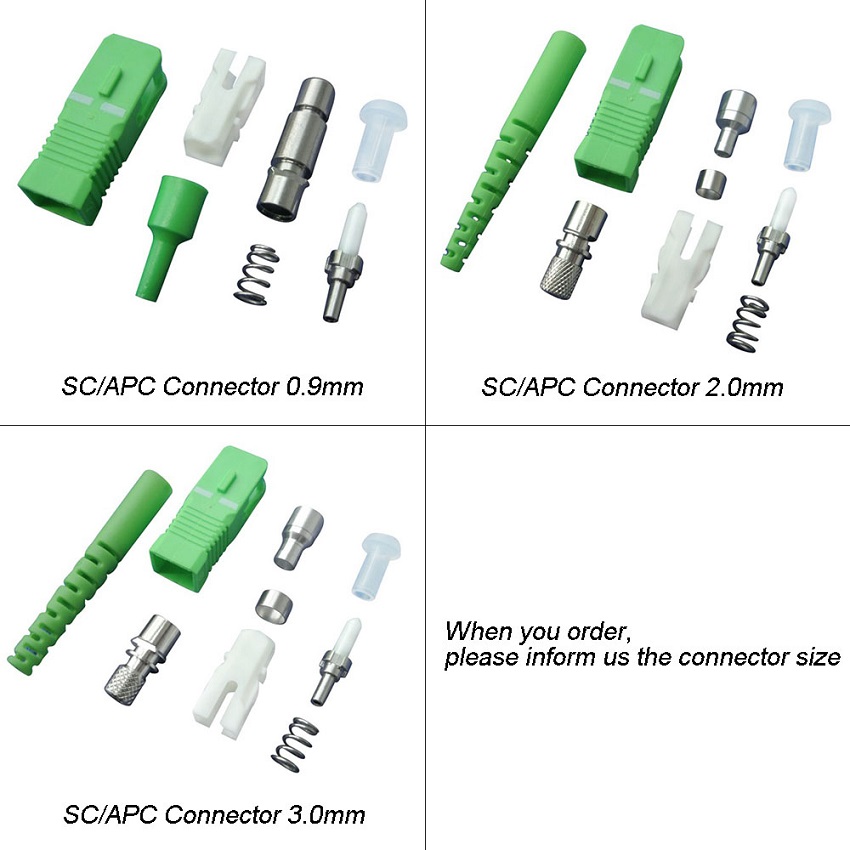

Product Details Pictures
Packing & Delivery
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
Transportation:ship it by air ,by sea, by express (DHL ,FEDEX ,UPS ,TNT ….)
Label printing : Customer logo
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
Transportation:ship it by air ,by sea, by express (DHL ,FEDEX ,UPS ,TNT ….)
Company Information
Recommend Products
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4:What’s the payment method?
A:.We accept,T/T,Western Union,MoneyGram,PayPal etc.
Q5: What about delivery time?
A: The general delivery time is 5-7 days after order confirmed,it depends on the order quantity
