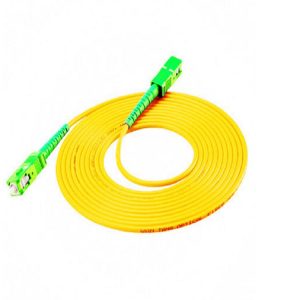

FTTH sc st fc lc sm mm sx dx lzsh 2mm yellow fiber optic patch cords
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient
- Description
- Size Guide
- Reviews (0)
Description
Product Description
FTTH sc st fc lc sm mm sx dx lzsh 2mm yellow fiber optic patch cords
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Patch Cords Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
ISO9001:2008,ROHS
Good echangeabilityGood Durability
High temperature stability
ISO9001:2008,ROHS
Patch Cords Applications
Specification
|
Mode
|
SM
|
MM
|
|
|
Polish
|
UPC
|
APC
|
APC
|
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
≤0.25dB
|
|
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
|
Interchangeability
|
≤0.2dB
|
||
|
Repeatability
|
≤0.1dB
|
||
|
Durability
|
≤0.2dB (1000 times mating)
|
||
|
Tensile Strengh
|
> 10kg
|
||
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
||
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
||
Ordering options
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on.
Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
