Gpon olt c320 GTGO ETGO Board Epon OLT With 2 Port
Small size andcompact design, flexible network and fast deployment
2U frame with 2 service slots, compatible with ZXA10 C320 line cards
Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
$650.00
Product Description
Original Brand New C320 GTGO ETGO Board Gpon Epon OLT With 2 Port

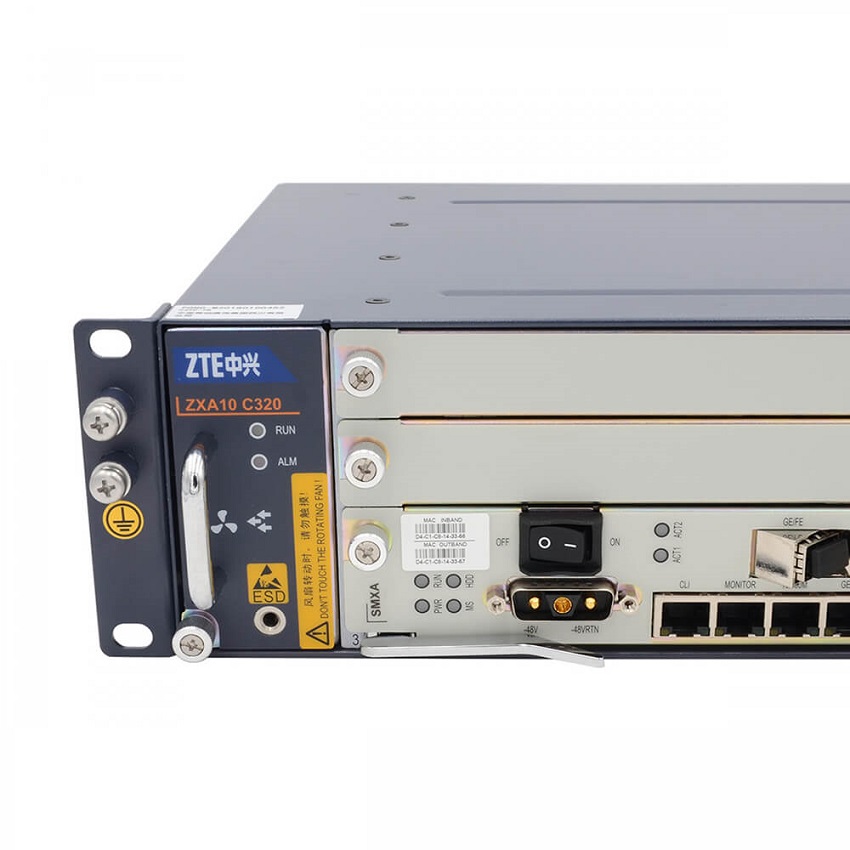

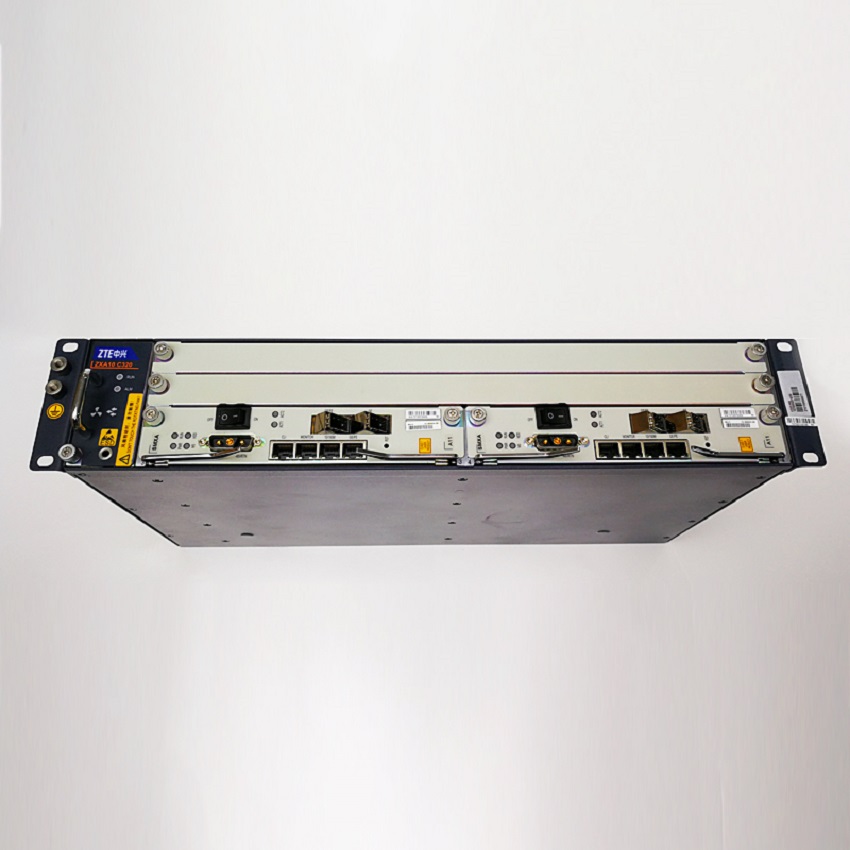

The ZXA10 C320 is the industry’s first compact FTTx central office access platform oriented to next-generation PON evolution. It is vastly deployed for low-density areas, outdoor deployment, and limited space scenarios. It offers ultrafast bandwidth, meets full-service access and multiple scenario requirements, and provides carrier-class QoS and security guarantee..
FTTH Network Application
The C320 supports the fiber to the home (FTTH) network application. It can be connected to the ONT in the user’s house through the PON port or provide the P2P optical access service through the FE or GE port.
·FTTB Network Application
The C320 supports the fiber to the building (FTTB) network application, and is connected to the ONU (MDU or ONT) that is deployed in the corridor through the PON port.
·FTTC Network Application
The C320 supports the fiber to the curb (FTTC) network application, connected to the ONU that is deployed at the curb through the PON port, or connected to the DSLAM that is deployed at the curb through the GE optical port.
The C320 supports the fiber to the home (FTTH) network application. It can be connected to the ONT in the user’s house through the PON port or provide the P2P optical access service through the FE or GE port.
·FTTB Network Application
The C320 supports the fiber to the building (FTTB) network application, and is connected to the ONU (MDU or ONT) that is deployed in the corridor through the PON port.
·FTTC Network Application
The C320 supports the fiber to the curb (FTTC) network application, connected to the ONU that is deployed at the curb through the PON port, or connected to the DSLAM that is deployed at the curb through the GE optical port.
Specification
|
Main Control Board
|
SMXA: 2
|
|
Pinch Card
|
UCDC1: 2
Provide total 4 GE uplink ports |
|
GPON Ports
|
0
|
|
Service Slots Remain
|
2
|
|
Power Supply Mode(W)
|
DC power supply: -48V+/-20%, -60V+/-20%
|
|
Device Specifications
|
|
|
Dimensions (mm)
|
86.1(H) × 482.6 (W) × 270 (D)
|
|
Weight(kg)
|
4.5
|
Order Guide
(1)AC or Dc power
(2)1.25G uplink or 10G
(3)with what board
Service boards
8 ports 1G GPON board:GTGO
8 ports 1G EPON board:ETGO
16 ports 1G GPON board:GTGH
16 ports 1G EPON board:ETGH
8 ports 10G GPON board:GTTO/ GTXO
8 ports 10G EPON board:ETTO
(2)1.25G uplink or 10G
(3)with what board
Service boards
8 ports 1G GPON board:GTGO
8 ports 1G EPON board:ETGO
16 ports 1G GPON board:GTGH
16 ports 1G EPON board:ETGH
8 ports 10G GPON board:GTTO/ GTXO
8 ports 10G EPON board:ETTO
