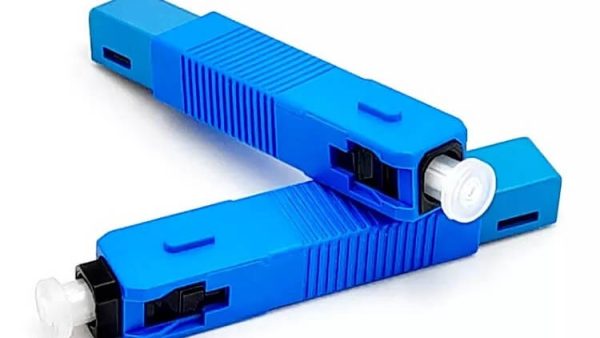

LC SC FC PC APC SX SM Fiber Optic Connector with 0.9/2.0/3.0mm Boot

$0.12
befurniturestore2-product-icon2
Fast shipping
Cartoon Box Packing
Product Description
Good Price LC SC FC PC APC SX SM Fiber Optic Connector with 0.9/2.0/3.0mm Boot
Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector ports in fiber optic systems Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.

Key Features:

* Return Loss: UPC >55 dB,
* APC>65 dB Back Reflection: APC<-65dB,
* UPC<-55dB Temperature Cycling:-20℃~-80℃
* Polishing Grade: PC, UPC, APC
* Connector Type: SC, FC, ST, LC. MU
* Fiber type: SM(9/125um)
* Optical performance 100% factory tested
* Easy installation as plug type

Applications:

1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification
Parameter
Unit
FC,LC,SC
ST,MU
SM
MM
SM
MM
PC
UPC
APC
PC
PC
UPC
PC
Insertion loss(typical)
dB
≤0.3
≤0.3
≤0.3
≤0.3
≤0.3
≤0.3
≤0.3
Return loss
dB
≥45
≥50
≥60
≥30
≥45
≥50
≥30
Operating wavelength
nm
1310,1510
1310,1510
Exchangeability
dB
≤0.2
≤0.2
Vibration
dB
≤0.2
≤0.2
Operating temperature
°C
-40~+75
-40~+75
Storage temperature
°C
-45~+85
-45~+85
Cable diameter
mm
Φ3.0,Φ2.0,Φ0.9
Φ3.0,Φ2.0,Φ0.9

Product Details Pictures
