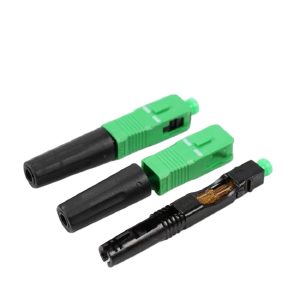

Ftth embedded fast fiber optic connector sc apc upc 55mm
$0.55
Fast shipping
Cartoon Box Packing
Product Description
Ftth embedded fast fiber optic connector sc apc upc 55mm
Fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
Key Features:
1) Low insertion loss
2) Ease of installation
3) Low cost & Reliability
4) Ease of use
5) Low environmental sensitivity
6) High return loss (low amounts of reflection at the interface)
2) Ease of installation
3) Low cost & Reliability
4) Ease of use
5) Low environmental sensitivity
6) High return loss (low amounts of reflection at the interface)
Applications:
1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification
|
Fast Connector
|
Singemode(UPC)
|
Singemode(APC)
|
Multimode
|
|
Insertion loss
|
≤ 0.2db
|
≤ 0.2db
|
≤ 0.25db
|
|
Return loss
|
≥55db
|
≥65db
|
≥30db
|
|
Durability
|
≤ 0.2db typical change, 1000 times mating
|
||
|
Operating Temperature
|
-45 to +85 degree
|
||
|
Ferrule Hole Sizes
|
125.0+1/-0um, Concertricity:≤1.0um
|
125.0+1/-0um, Concertricity:≤0.5um
|
127.0um, Concertricity: ≤3.0um
|
|
125.5+1/-0um, Concertricity:≤1.0um
|
125.5+1/-0um, Concertricity:≤0.5um
|
||
|
126.0+1/-0um, Concertricity:≤1.0um
|
126.0+1/-0um, Concertricity:≤0.5um
|
||
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.
