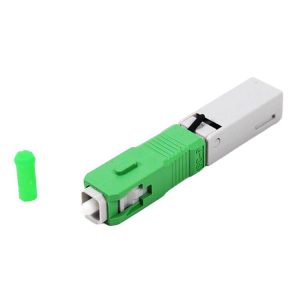

Fiber Optic Quick Connector SC APC/UPC Optical Fiber Cable Fast Connector
$0.35
Fiber Optic Quick Connector SC APC/UPC Low Insertion Loss,High Return Loss.Simplex, Duplex, Quad available.Sustained good performance.Use of low cost ,Use of good performance.Fast installation
Fast shipping
Cartoon Box Packing
Product Description
Fiber Optic Quick Connector SC APC/UPC Optical Fiber Cable Fast Connector
Fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
Key Features:
1) Low insertion loss
2) Ease of installation
3) Low cost & Reliability
4) Ease of use
5) Low environmental sensitivity
6) High return loss (low amounts of reflection at the interface)
2) Ease of installation
3) Low cost & Reliability
4) Ease of use
5) Low environmental sensitivity
6) High return loss (low amounts of reflection at the interface)
Applications:
1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification
|
Fast Connector
|
Singemode(UPC)
|
Singemode(APC)
|
Multimode
|
|
Insertion loss
|
≤ 0.2db
|
≤ 0.2db
|
≤ 0.25db
|
|
Return loss
|
≥55db
|
≥65db
|
≥30db
|
|
Durability
|
≤ 0.2db typical change, 1000 times mating
|
||
|
Operating Temperature
|
-45 to +85 degree
|
||
|
Ferrule Hole Sizes
|
125.0+1/-0um, Concertricity:≤1.0um
|
125.0+1/-0um, Concertricity:≤0.5um
|
127.0um, Concertricity: ≤3.0um
|
|
125.5+1/-0um, Concertricity:≤1.0um
|
125.5+1/-0um, Concertricity:≤0.5um
|
||
|
126.0+1/-0um, Concertricity:≤1.0um
|
126.0+1/-0um, Concertricity:≤0.5um
|
||
