Top Quality SC APC Network Fiber Optic Adapters
$1.14
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables. We t provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
- Description
- Size Guide
- Reviews (0)
Description
Product Description

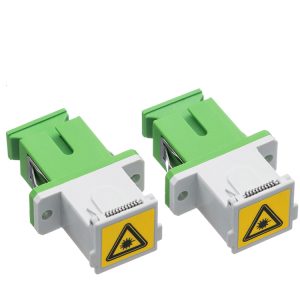

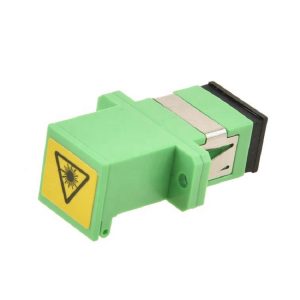

Top Quality SC APC Network Fiber Optic Adapters
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Fiber Optic Adapter Features
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Fiber Optic Adapter Application
1. CATV
2. Telecommunication networks
3. Test equipment
4. Metro
5. Local Area Networks(LANs)
6. Data processing networks
2. Telecommunication networks
3. Test equipment
4. Metro
5. Local Area Networks(LANs)
6. Data processing networks
Fiber Opitc Adapter Specification
|
Parameter
|
Unit
|
LC, SC, FC, ST
|
|||
|
SM
|
MM
|
||||
|
PC
|
UPC
|
APC
|
PC
|
||
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Return Loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥30
|
|
Exchangeability
|
dB
|
≤0.2
|
|||
|
Repeatability
|
dB
|
≤0.2
|
|||
|
Durability
|
Time
|
>1000
|
|||
|
Operating Temperature
|
°C
|
-40~75
|
|||
|
Storage Temperature
|
°C
|
-45~85
|
|||
Product Details
Packing & Delivery
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or normal available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS …
Label printing : Customer logo or normal available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS …
Company Information
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4:What’s the payment method?
A:.We accept,T/T,Western Union,MoneyGram,PayPal etc.
Q5: What about delivery time?
A: The general delivery time is 5-7 days after order confirmed,it depends on the order quantity
