Chinese Supplier ADSS Double jacket Aerial 24core ADSS Fiber optical cable with 200M Span
$0.15
Fast shipping
Cartoon Box Packing
Product Description
Chinese Supplier ADSS Double jacket Aerial 24core ADSS Fiber optical cable with 200M Span

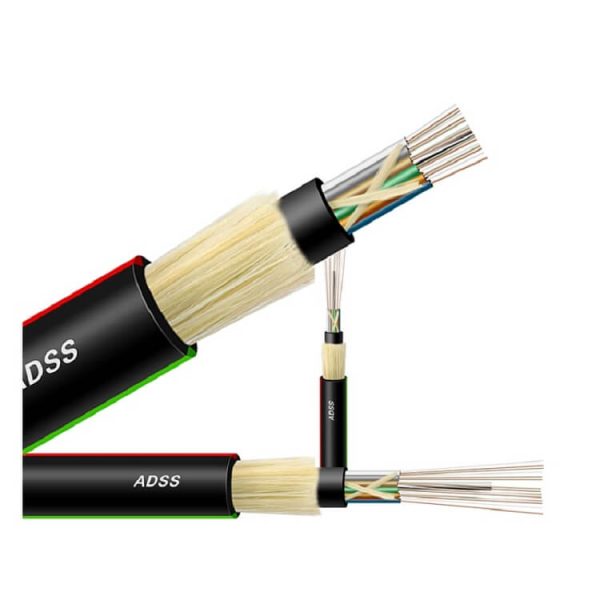

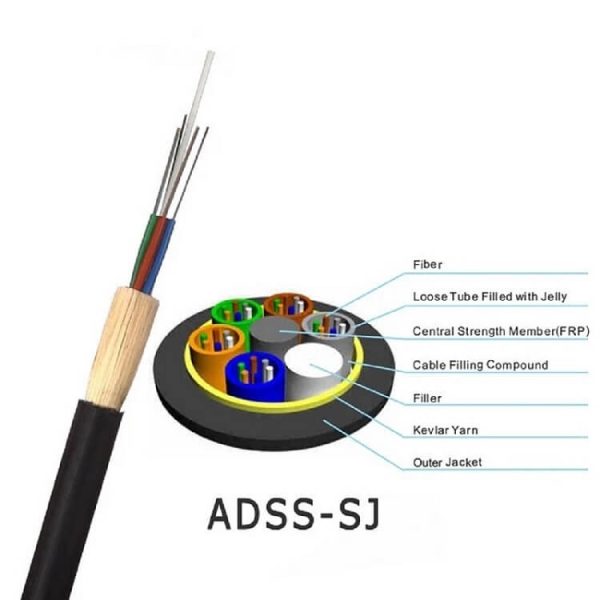

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as anon-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
Specification
|
Model Number
|
ADSS
|
|
Type
|
Coaxial
|
|
Number of Conductors
|
≥ 10
|
|
Application
|
Aerial fiber cable
|
|
Function
|
Delivery signal light
|
|
Certification
|
ADSS pass ISO9001,UL, TIL, CE
|
|
Sheath material
|
PE or AT for adss fiber optic cable
|
|
Fiber type
|
OS1/OS2,OM1,OM2,OM3,OM4
|
|
Length per roll
|
2km/3km/4km ADSS fiber
|
|
Marking
|
printing
|
|
Fiber count
|
2core to 288 core
|
|
Strength member
|
FRP
|
Product Parameters
|
odel
|
fiber cores
|
OD (outer dia.)
|
Weight
kg/km |
Tensile
Strength Long /Short Term |
Crush Resistance
Long/Short Term N /100mm |
Bending Radius
Static /Dynamic mm |
|
ADSS
|
6-288
|
7-20mm
|
70-300
|
3500/7000N
|
300/1000
|
15D/30D
|
Cable Parameters
|
Cores no.
|
2-42
|
44-72
|
74-84
|
86-96
|
98-108
|
110-120
|
122-132
|
134-144
|
|
OD Outer diameter(mm)
|
10.4
|
11.2
|
12.2
|
14.0
|
14.8
|
15.8
|
16.6
|
17.4
|
|
Cable weigh(kg/km)
|
90
|
100
|
115
|
180
|
195
|
220
|
240
|
265
|
