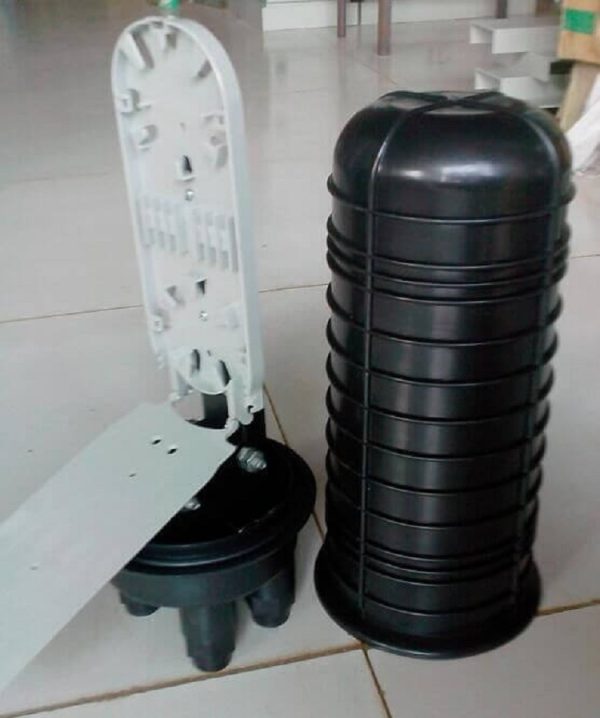

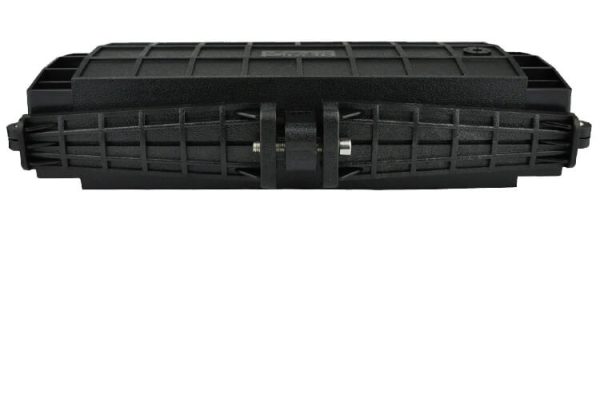

36, 48, 96 core FTTH Horizontal Dome Type Fiber Splicer Closure Optic Closure Box
$8.20
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- Description
- Size Guide
- Reviews (0)
Description
Product Description
36, 48, 96 core FTTH Horizontal Dome Type Fiber Splicer Closure Optic Closure Box
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx
communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Product Features
– Water-proof design with IP-66 Protection level.
– Integrated with splice cassette and cable management rods.
– Manage fibers in a reasonable fiber radius condition.
– Easy to maintain and extend the capacity.
– Fiber bend radius control more than 40mm.
– Suitable for the fusion splice or mechanical splice.
– 1*16 Splitter can be installed as an option.
– Efficient cable management.
– 16 ports cable entrance for drop cable.
– Integrated with splice cassette and cable management rods.
– Manage fibers in a reasonable fiber radius condition.
– Easy to maintain and extend the capacity.
– Fiber bend radius control more than 40mm.
– Suitable for the fusion splice or mechanical splice.
– 1*16 Splitter can be installed as an option.
– Efficient cable management.
– 16 ports cable entrance for drop cable.
Specification
|
Product Name
|
Fiber Optic Distribution Box
|
IP Rate
|
IP65
|
|
Product Model
|
FDB-16
|
Product Size
|
325*250*120mm
|
|
Ports
|
2 inlet port / 16 out port
|
Packing Quantity
|
10 pcs / carton
|
|
Compatible with
|
1:16 mini or cassette splitter or 16 core adapter pigtail
|
Material
|
ABS + PC
|
|
Installation Type
|
Wall / Pole mounted
|
Net Weight
|
1.45kg
|
|
Accessories
|
1. Wall mounting kits: 4 pieces
2. Screws: 4 pieces 3. Cable tie: 10 pieces 4. Heat shrink protective sleeves: 16 pieces 5. Key: 1 piece 6. Inlet accessories: 1 set |
||
